Video Boards

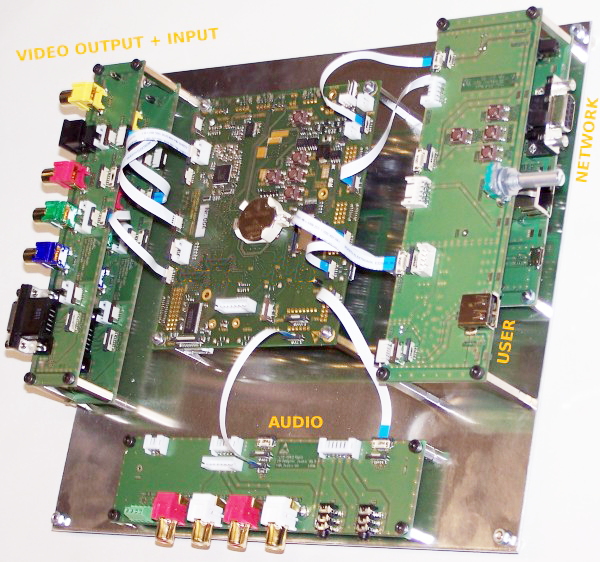

These Evaluation - Kit has following responsibilities
Test environment for the implementation and verification of function
Reference installation for the integration of own products for customers.
Reliable reference environment around for future - e.g critical use of the product by the customer - who continue to verify correct operation.

For questions or for more information on this topic we are happy to help
LO 1 : LVDS SMIL Video Player
For Direct Integration To Display Full - HD ( Optional with UMTS Interface )

The LO 1 is a video player in the format of  Boards" for direct control of Displays/ Panels via LVDS As platform, U-HD1 L01 board can be delivered in different configurations according to specific custorner requirements

In summary, the "L01" has the following maximized properties
Control of a full HD display (1920 X 1080 pixels) for dual-channel LVDS with a resolution of B60.1080, that means horizontally, each pixel is represented twice
Second dual-channel LVDS output for dual display control (back-to-back)
Smaller resolutions. such as 1440 X 900, are possible through a customized driver
Alternatively, single-channel displays up to 1366 X 768 are possible.

Playlists-controlled= playback of videos (including audio) in half a display format integrated audio amplifier to 2,X 7 Watt / 4 Ohm

Automatic time-controlled exchange of playlists

Timed content update according to the pull.principle via IP connection via UMTS or Ethernet (SMIL format, adapted to different CMS). Wifri on request Content can also be updated from the outside, for example be by phone triggered
Alternatively direct local data on internal, memory card upgradable via USB

Direct video streaming as an alternative to players from a storage device (planned)

Additanal intormatan as split screen and overlay (planned)

Analog clock positionable graphics' images, tucker text and much more

Optional use with extended temperature range even without air conditiong outdoor

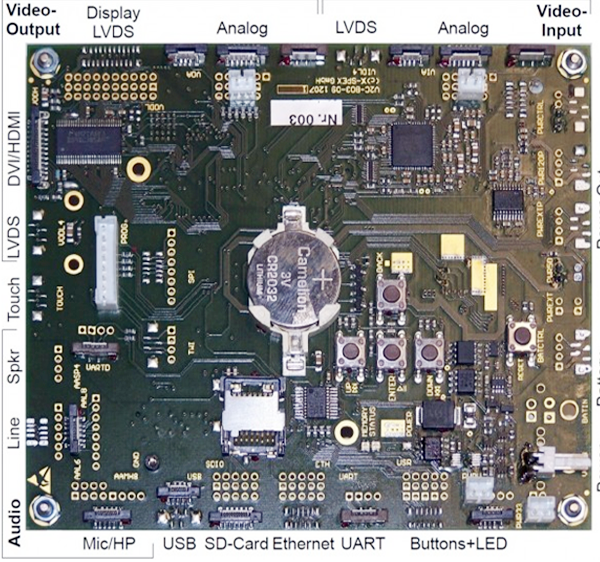

VRL- B02

The VRL- B02“ is used as a universal VCR, covering different resolutions depending on the stage of development and offers a variety of interface options. To sum up, this Board has the following features:
Analog inputs: S-Video, YCrCb (components), RGB Over lay Information during recording mode
Display with 100 ms maximum delay Status information asa display overlay
Analog Display, alternatively been activated:
S-Video, YCrCb (COMPONENT), RGB		 Configurable and controllable on screen display ( OSD )
Digital Display: Display-LVDS, HDMI/DVI, 2-Wire-LVDS for extern IO-Adapter Externel interfaces on FPC - Socket or 2min pic header up or down, horizontal or vertical selectable.
(Device interface via 10 -Adapter)
Video recording in H.264-format Connection of 4 buttons (respectively 2x buttons plus rotary encoder) for control
3 Variants of resolution: SD bis FullHD Connection of 2x 2 -Color LED (Memory and status) and lx LLD (power) for status signaling.
Stereo audio, incl. Amplifier for micro and headset/speaker (2x 0,5 W or 2x 5 W) Connection of touch panel
Various storage options: intern, SD card, USB, SATA
Automatic splitting of long shots		 Industrial Temperature range -40..+85 0C
JPG pictures during the video recording (also Picture-In-Picture-Mode) External power supply 9..36 V
Various options of control: button μC, network,UART,RS422 time and power
 Power Supply for attached peripherals ; SD Card and USB Memory - Stick 2x Current incl.PWM and enable e.g. for display backlight and camera.
Automatic splitting of long shots Secure shut down on power failure
Pre-Trigger - record up to 60 seconds from the past
  DIMENSION:100mm X 80mm Battery Operation with battery manager ZPBC2
SD-Recorder/ Player with "Save-Power-Down"

With audio (Line-IO) and „Save-Power-Down“-Function (with SuperCaps)

For questions or for more information on this topic please send an e-mail or call us, we are happy to help.
